In precision machining, not all drilling methods are created equal. When projects require deep, straight, and highly accurate holes, standard drilling techniques often fall short. That’s where gun drilling comes in.
Gun drilling is a specialized machining process designed for deep-hole drilling applications where precision, consistency, and surface finish matter. In this guide, Lindsay Machine Works explains what gun drilling is, how it works, and when it’s the right choice for your project.
What Is Gun Drilling?
Gun drilling is a deep-hole drilling process capable of producing holes with extreme depth-to-diameter ratios while maintaining straightness and tight tolerances. Unlike conventional twist drills, gun drills are specifically engineered to drill holes that are many times deeper than their diameter.
The process was originally developed for manufacturing gun barrels, which is where the name comes from. Today, gun drilling is widely used across aerospace, automotive, industrial manufacturing, energy, and tooling applications.
How the Gun Drilling Process Works

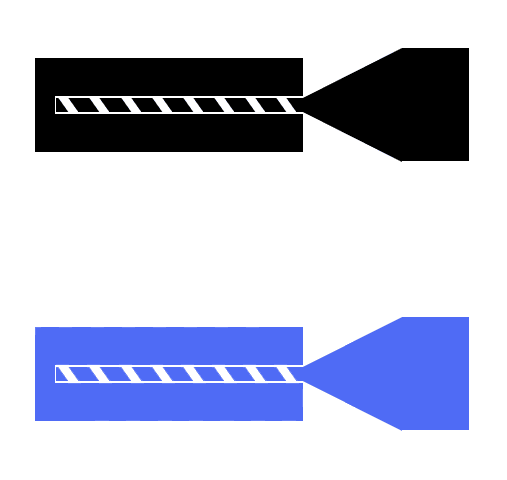

Gun drilling uses a long, slender drill tool with a unique geometry. The cutting edge removes material while high-pressure coolant flows through the tool, directly to the cutting tip. This coolant serves two critical purposes: it cools the cutting edge and continuously evacuates chips from the hole.
Because chips are removed efficiently and heat is controlled, gun drilling produces straighter holes with smoother internal finishes than traditional drilling methods. The process can be performed with either a rotating tool and a stationary workpiece or vice versa, depending on the setup and application.
Why Gun Drilling Is Different from Conventional Drilling
Traditional drilling methods work well for shallow holes, but accuracy decreases as hole depth increases. Gun drilling is designed specifically to overcome these limitations.
The process allows for consistent hole straightness, minimal runout, and excellent surface finish, even at extreme depths. This makes gun drilling ideal for applications where internal alignment and precision are critical.
When Should You Use Gun Drilling?
Gun drilling is the preferred solution when a project requires deep holes that must remain straight and accurate throughout their length. It is commonly used when the depth of the hole exceeds ten times its diameter or when tight tolerances are required.
This process is also ideal when internal surface finish matters, such as in fluid transfer systems, hydraulic components, or precision tooling. If a hole must be drilled in a single pass without deviation, gun drilling is often the most reliable option.
Common Applications for Gun Drilling
Gun drilling is widely used in industries that demand precision and repeatability. Common applications include hydraulic cylinders, mold and die components, aerospace parts, automotive shafts, oil and gas components, and custom industrial tooling.
It is also frequently used in parts that require internal channels for lubrication, cooling, or fluid flow, where consistency and cleanliness are essential.
Materials Suitable for Gun Drilling
Gun drilling works well on a wide range of materials, including carbon steel, stainless steel, aluminum, tool steel, alloy steel, and certain non-ferrous metals. With proper tooling and coolant selection, even difficult-to-machine materials can be drilled accurately.
Choosing the right cutting parameters and tooling is essential to achieving optimal results, especially when working with hardened or high-strength alloys.
Advantages of Gun Drilling
One of the biggest advantages of gun drilling is its ability to produce deep, straight holes with excellent surface finish in a single operation. This reduces the need for secondary processes such as reaming or honing.
Gun drilling also improves consistency across production runs, making it ideal for both custom and high-volume manufacturing. Reduced scrap, improved accuracy, and predictable results make it a cost-effective solution for precision components.
Challenges to Consider
While gun drilling offers many benefits, it does require specialized equipment, tooling, and expertise. Improper setup, incorrect coolant pressure, or poor tool selection can affect results.
That’s why working with an experienced machine shop is critical. Skilled operators understand how to optimize speeds, feeds, and coolant flow to achieve consistent quality.
Why Choose Gun Drilling at Lindsay Machine Works
At Lindsay Machine Works, we use advanced gun drilling techniques to deliver precision deep-hole machining for demanding applications. Our experience across multiple industries allows us to select the right tooling, materials, and processes for each project.
Whether you need tight tolerances, smooth internal finishes, or consistent repeatability, our gun drilling capabilities help ensure your parts meet exact specifications.
Conclusion
Gun drilling is a specialized machining process designed for precision deep-hole drilling where accuracy, straightness, and surface finish are critical. When conventional drilling methods aren’t enough, gun drilling provides a reliable, high-performance solution.
If your project requires deep, straight holes with consistent quality, gun drilling may be the right choice. Lindsay Machine Works is here to help you determine the best machining approach for your needs.
